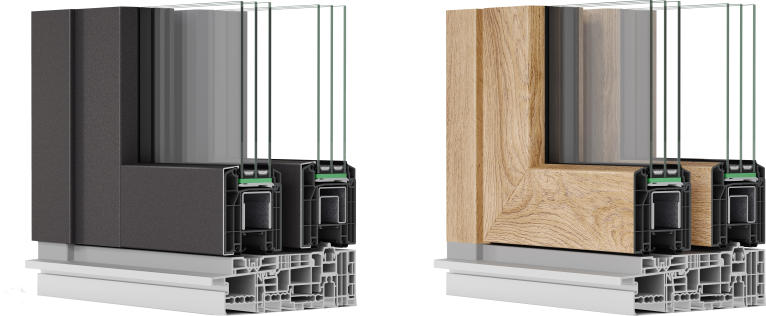

• Frame / sash construction depth 203 mm / 86 mm
• Maximum insulating glass thickness 53 mm
• Visible frame surface 63 mm
• Visible sash surface 97 mm
• Maximum sash weight 400 kg
• Maximum sash dimensions (LxH):
• White – 3000x2700mm
• Colour – 2600x2600mm
• Uf profile heat transfer coefficient up to 1.3 W/m2K
• Wind resistance up to class B3 according to DIN EN 12210
• Water tightness up to class 9A according to DIN EN 12208
• Wind tightness Class 4 according to DIN EN 12207
• Permanent operation Class 2 according to DIN EN 12400
• Sound insulation class Up to Rw,P = 42 dB
• Burglar resistance class Up to RC2 according to DIN EN 1627
• High Definition Finishing (HDF) Surface

Color diversity by KALEIDO COLOR
(decor foil, wood or uni colors, aluminium cladding)
