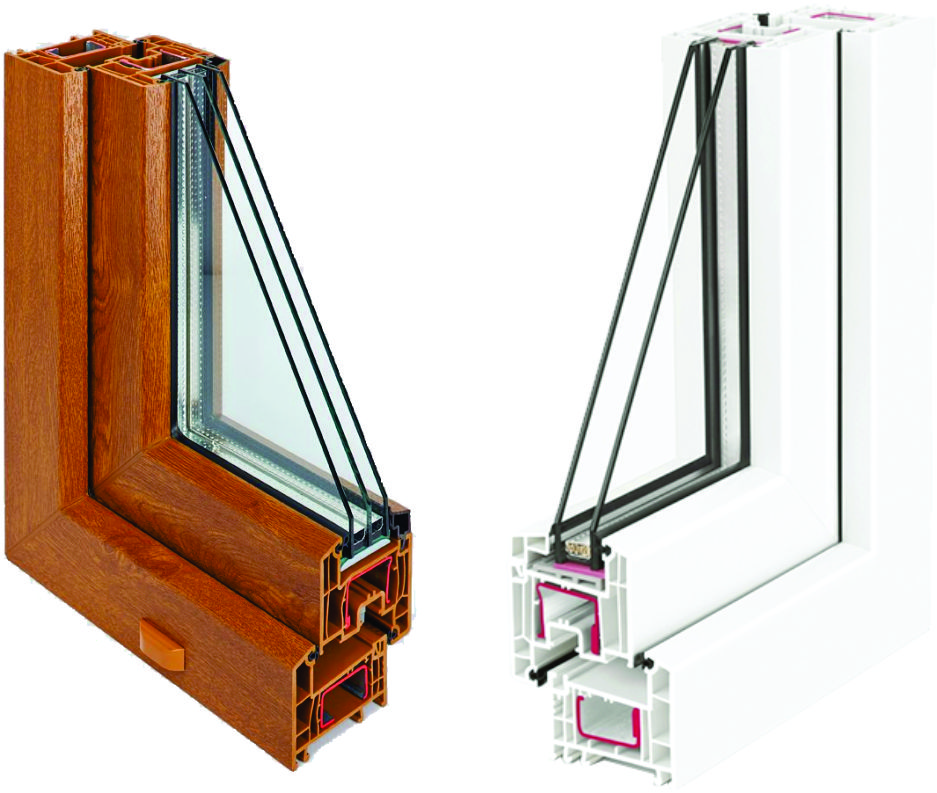

REHAU Euro70
Euro-Design 70 offers the best conditions for construction projects. Accredited with quality standards REHAU, Euro-Design 70 is an economical window system.
The numerous shapes, colours and design palette offer numerous possibilities for their design.
Technical data
- Construction depth: 70 mm
- Number of chambers: 5 chambers
- Thermal insulation: Uf= 1.3 W/m2K
- (E70 standard reinforcement)
- Sound insulation: up to Rw,P= 45 dB
- Standard reinforcement:1.5mm for window profiles 3mm for door profiles
- GU and ROTO NX/Designo as hardware accessories
ADVANTAGES
- Economical system for many applications
- HDF surface (High-Definition finish): high-quality, extremely smooth and durable, easy to clean
- Inclined seam in frames for more efficient drainage and easier cleaning
- Excellent features due to reinforcement with a large installation depth
- Generally the same reinforcement type in frame and sash, to reduce stocks
- Optional weldable gaskets of your choice, for rational processing
- Environmentally friendly, as it is recyclable
DESIGN
- Design options by choosing the shape of the sash: straightor round
- Additional design possibilities by coloring with decorative foils, painting or cladding on the outside with aluminum covers
- Individual shapes can be made such as: round, irregular, as well as inclined or divided windows
Colors
